512-Slice CT

As a high-end 512-slice CT apart from facilitating complex routine scans also has the full capability of becoming a valuable appliance in advanced researches. Scanner stands out with such features, as the detector that has a Z-axis coverage up to 160 mm, the gantry system that enables a rotation speed up to 0.25 seconds, and AI-empowered workflow. As a result, challenging clinical scans including one-stop stroke imaging, CTA scan as well as emerg

Product Detail

Features & Benefits

DivineLight Detector Technology

The 256-row DivineLight detector combines features of 160 mm whole-organ coverage in Z-axis, enhanced DivineLight scintillator, and spherical surface design as a whole, and utilizes the bottom-up approach to improve X-ray efficiency and reduce noise to eventually deliver sharp, high-resolution images at the lowest possible dose.

DivineArk Gantry

DivineArk gantry utilises a magnetic suspension bearing (so-called “magnetic levitation”, or “Maglev”) and a direct-drive motor to achieve high-speed 0.25 s rotation speed. This technology facilitates to contact-free operation between the rotor and the stator, resulting in greater acceleration to reach the specified speed quickly in the silent mode (20dB lower than the traditional one). The use of a direct-drive motor also efficiently reduces artifacts, resulting in more stable and precise imaging.

Big Bore Aperture 80cm

The big-bore design accommodates for bariatric patients and improves the scan experience for those with claustrophobic symptoms by reducing the impression of construction. 80 cm gantry aperture satisfies space requirements of interventional treatment and CT-Simulation.

Effieient Dose Management

MinFound developed innovative iteration algorithm called NDI for image reconstruction that leverages advanced techniques in anatomical structure analysis within image space, as well as model-driven iteration involving tube and detector in projection space. The goal is to generate sharp and high-resolution images at the lowest possible dose.

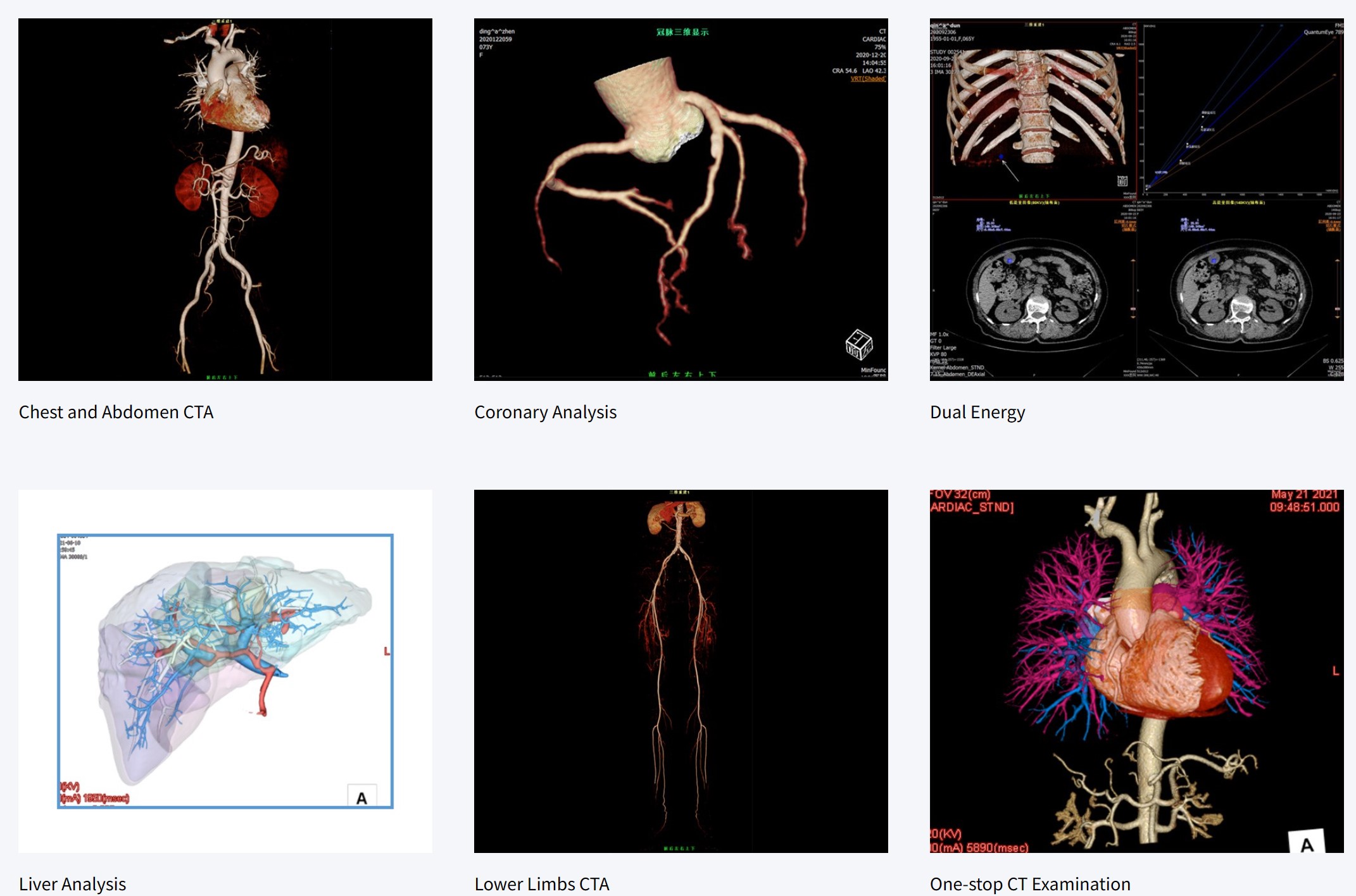

Clinical Gallery
